Imagine this: you're cruising down the highway, windows down, music blasting, when suddenly your car sputters and dies. You pull over, try to restart it, but nothing. The engine cranks, but it just won't catch. You're stranded, frustrated, and wondering what could possibly be wrong. What if I told you the culprit could be a tiny, inexpensive part called the main relay?
That sinking feeling of being stuck on the side of the road, the unexpected expense of towing, the inconvenience of missed appointments or delayed plans – all because of a seemingly insignificant component. It's enough to make any car owner's blood boil. You start to think about worst-case scenarios, the potential cost of repairs, and the reliability of your vehicle.
This blog post is dedicated to unraveling the mystery of the main relay. We'll explore its function, pinpoint the telltale signs of failure, delve into its history, and arm you with the knowledge to potentially diagnose and even replace this crucial part yourself. Understanding the main relay can save you time, money, and a whole lot of headache. We’ll also discuss troubleshooting and preventative measures.
In essence, we will cover the function of the main relay, its symptoms when failing (like stalling, no-start conditions, and fuel pump issues), potential causes of failure (heat, vibration, age), and troubleshooting tips. We'll also explore preventative measures, and the possibility of replacing it yourself to save on labor costs. Stay tuned to gain valuable insights that could prevent you from being stranded!
Main Relay Symptoms: A Personal Brush with Automotive Grief
Let me tell you about the time I learned firsthand about the importance of the main relay. It was a sweltering summer day, and I was driving my trusty (or so I thought) Honda Civic to a friend's barbecue. About halfway there, the car just quit. No warning lights, no sputtering – just dead. I tried to restart it, but it only cranked and cranked. I was completely baffled. After a frantic call to my mechanically inclined uncle, he walked me through some basic troubleshooting over the phone.
He asked about the fuel pump – could I hear it prime when I turned the key? Nope. He then mentioned the main relay, a component he said was notorious for failing in older Hondas, especially in hot weather. He suggested tapping on it lightly, which felt ridiculous, but desperate times... To my utter surprise, after a few taps, the fuel pump whirred to life, and the car started! I made it to the barbecue, albeit with a nervous eye on the temperature gauge and a newfound respect for the main relay. That evening I ordered a replacement main relay online. It was a relatively inexpensive fix (under $25), but it saved me from a hefty towing bill and a likely expensive mechanic's visit. Ever since then, I've always kept a spare main relay in my glove compartment – a small price to pay for peace of mind. The main relay's crucial role in supplying power to vital engine components like the fuel pump and ignition system makes it a prime suspect in no-start or stalling scenarios. Its failure, often heat-related, can leave you stranded unexpectedly.
What is a Main Relay? Unveiling the Power Broker
The main relay, often called the PGM-FI main relay (Programmed Fuel Injection), acts as an electrical switch that controls power distribution to essential engine components. Think of it as a gatekeeper ensuring that the fuel pump, injectors, and ignition system receive the necessary voltage to operate correctly. It's typically found near the fuse box or under the dashboard, though its exact location can vary depending on the make and model of your vehicle. When you turn the ignition key to the "on" position, the main relay is energized, completing the circuit and allowing power to flow to these critical systems. This initial priming is essential for starting the engine. Without a functioning main relay, these components won't receive power, and the engine simply won't start. It's not a complicated part, but it is an essential piece of the puzzle. The consequences of a failing main relay can range from intermittent stalling to a complete no-start situation, leaving you stranded and frustrated. That's why understanding its function and potential failure points is so crucial for any car owner.
A Brief History and Common Myths about Main Relays
The main relay's history is intertwined with the evolution of fuel-injected engines. As vehicles transitioned from carburetors to more sophisticated fuel injection systems, the need for a reliable way to control power distribution to these electronic components became paramount. The main relay emerged as a simple yet effective solution. Early versions were prone to failure due to poor solder joints and heat sensitivity, leading to widespread frustration and the common misconception that they were inherently unreliable. While improvements have been made over the years, the main relay remains a relatively fragile component, susceptible to heat, vibration, and age. One common myth is that a failing main relay will always trigger a check engine light. While some failures might register a diagnostic trouble code, many don't, making diagnosis more challenging. Another misconception is that all main relays are the same. In reality, they vary in design and voltage requirements depending on the specific vehicle model. Using the wrong relay can cause damage to your vehicle's electrical system, so it's crucial to consult your owner's manual or a reliable parts database to ensure you're using the correct one. The persistent association of the main relay with older Hondas and Acuras stems from their widespread use of a particular type of relay prone to failure. While this reputation isn't entirely unfounded, it's important to remember that main relays can fail in vehicles of any make or model.
Hidden Secrets of the Main Relay: More Than Just a Switch
Beyond its basic function as an electrical switch, the main relay has a few hidden secrets that contribute to its importance and vulnerability. One crucial aspect is its internal construction. Most main relays contain a coil of wire that, when energized, creates a magnetic field. This magnetic field pulls a contact closed, completing the circuit. Over time, the coil can weaken, the contacts can become corroded, or the solder joints can crack, all leading to failure. Another hidden factor is the relay's location within the vehicle. Often tucked away in a hot engine bay or under the dashboard near other heat-generating components, the main relay is constantly exposed to temperature fluctuations. This thermal stress accelerates the degradation of its internal components, shortening its lifespan. Furthermore, the main relay is often subjected to vibrations from the engine and the road. These vibrations can loosen connections and further weaken the solder joints. Another little-known fact is that some main relays incorporate a small diode to protect other electronic components from voltage spikes. If this diode fails, it can disrupt the relay's operation or even damage other parts of the electrical system. By understanding these hidden vulnerabilities, you can appreciate the importance of preventative maintenance and early detection of potential main relay problems.
Recommendations for Dealing with a Suspected Failing Main Relay
If you suspect your main relay is failing, don't panic! Here are some recommendations to help you diagnose and address the issue. First, try the "tap test." Locate the main relay (consult your owner's manual or a repair guide) and gently tap on it with the handle of a screwdriver. If the car starts immediately after tapping, it's a strong indication that the relay is faulty. Keep in mind, the tap test is not a guaranteed diagnostic method. It only serves as a temporary fix and can help you identify the problem. Secondly, inspect the relay for any visible signs of damage, such as cracks, corrosion, or burnt terminals. If you see any of these, replace the relay immediately. Thirdly, consider replacing the main relay as a preventative measure, especially if your vehicle is older or has a history of electrical problems. A new relay is relatively inexpensive and can save you from a potentially costly breakdown. Fourthly, if you're not comfortable working on your car yourself, take it to a qualified mechanic for diagnosis and repair. They have the tools and expertise to accurately diagnose the problem and replace the relay if necessary. Finally, always use a high-quality replacement relay from a reputable manufacturer. Cheap aftermarket relays may not meet the same standards as OEM relays and could fail prematurely. By following these recommendations, you can minimize the risk of being stranded by a failing main relay and ensure your vehicle's reliable operation.
Troubleshooting a Main Relay Issue: A Step-by-Step Guide

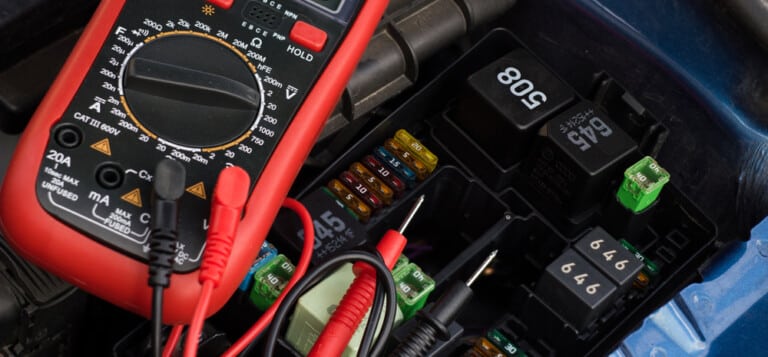

Troubleshooting a main relay issue can seem daunting, but with a methodical approach, you can often pinpoint the problem. Start by gathering some essential tools: a multimeter, a wiring diagram for your vehicle (available online or in a repair manual), and a replacement main relay (just in case). First, verify that the main relay is receiving power. Use the multimeter to check for voltage at the relay's power terminals with the ignition switch in the "on" position. If there's no voltage, trace the wiring back to the power source, checking for blown fuses or broken wires along the way. Second, check the ground connection. A poor ground can prevent the relay from functioning correctly. Clean the ground terminal and ensure it's securely connected to the chassis. Third, test the relay itself. Refer to the wiring diagram to identify the relay's control circuit. Use the multimeter to check for continuity across the relay's output terminals when the control circuit is energized. If there's no continuity, the relay is likely faulty. Fourth, if you suspect a wiring problem, carefully inspect the wiring harness for any signs of damage, such as frayed insulation, corrosion, or loose connections. Use a wire tracer to follow the wires and identify any breaks or shorts. Finally, if you've exhausted all other possibilities, consider testing the components that the main relay powers, such as the fuel pump and ignition system. A faulty fuel pump or ignition module can sometimes mimic the symptoms of a failing main relay. Remember to always disconnect the battery before working on your vehicle's electrical system to avoid electrical shock.
Tips for Preventing Main Relay Failure: Keeping it Alive and Well
Preventing main relay failure is a worthwhile investment in your vehicle's reliability. Here are some tips to help you keep this crucial component in good working order. One of the most effective preventative measures is to relocate the main relay to a cooler location. If it's located in the engine bay, consider moving it to under the dashboard or another area with better ventilation. This will reduce the thermal stress on the relay and extend its lifespan. Another tip is to use a heat shield to protect the relay from radiant heat. You can purchase a pre-made heat shield or fabricate one yourself using heat-resistant material. Regularly inspect the relay for any signs of damage, such as cracks, corrosion, or burnt terminals. Replace the relay immediately if you notice any of these problems. Use a dielectric grease on the relay's terminals to prevent corrosion. This will ensure a good electrical connection and prevent premature failure. Avoid overloading the electrical system with aftermarket accessories. Excessive electrical load can strain the main relay and shorten its lifespan. If you're installing aftermarket accessories, make sure they're properly fused and wired. Finally, consider replacing the main relay as part of your regular maintenance schedule, especially if your vehicle is older. A new relay is relatively inexpensive and can provide peace of mind. By following these tips, you can significantly reduce the risk of main relay failure and keep your vehicle running smoothly.
Choosing the Right Replacement Main Relay: Compatibility Matters
When replacing your main relay, selecting the correct replacement is paramount for ensuring compatibility and optimal performance. Start by consulting your vehicle's owner's manual or a reliable parts database to determine the exact part number for your main relay. Using the wrong relay can damage your vehicle's electrical system. Pay attention to the voltage and amperage ratings of the relay. These ratings indicate the amount of power the relay can handle. Using a relay with incorrect ratings can cause it to overheat and fail prematurely. Consider the quality of the replacement relay. Choose a high-quality relay from a reputable manufacturer. Cheap aftermarket relays may not meet the same standards as OEM relays and could fail prematurely. Check the pin configuration of the relay. The pins on the relay must match the corresponding sockets in your vehicle's electrical system. Using a relay with a different pin configuration can damage the wiring harness. Read online reviews of the replacement relay to get an idea of its reliability and performance. Other users' experiences can provide valuable insights. If you're unsure about which relay to choose, consult a qualified mechanic. They can help you select the correct relay for your vehicle and install it properly. Don't be tempted to use a used relay. Used relays may have already been weakened and are more likely to fail. Always use a new relay for optimal reliability. By following these guidelines, you can ensure that you choose the right replacement main relay for your vehicle and avoid potential problems.
Fun Facts About Main Relays: The Unsung Hero of Your Car
Did you know that the main relay is often one of the first components automotive engineers consider when designing a fuel injection system? Its reliable operation is crucial for ensuring the engine starts and runs smoothly. Main relays are surprisingly robust, despite their small size. They can withstand thousands of switching cycles and operate in a wide range of temperatures. The main relay's clicking sound when you turn the ignition key to the "on" position is a sign that it's working properly. This sound is the result of the relay's internal contacts closing. Some main relays are equipped with a built-in fuse to protect the relay and other electrical components from overcurrent. The main relay is often located in a hard-to-reach place, making it a challenge to replace. This is because it's typically tucked away near the fuse box or under the dashboard to protect it from the elements. The main relay is a crucial component for passing vehicle emissions tests. A faulty relay can cause the engine to run rich or lean, leading to increased emissions. The main relay is a relatively inexpensive part, but its failure can result in significant repair costs. A faulty relay can cause the engine to stall, leaving you stranded and requiring a tow. The main relay is a testament to the ingenuity of automotive engineers. It's a simple yet effective component that plays a vital role in your vehicle's operation. The main relay is a silent guardian, protecting your engine and ensuring its reliable performance. It's an unsung hero that deserves our respect. By appreciating these fun facts, you can gain a newfound appreciation for the importance of the main relay.
How to Replace a Main Relay: A DIY Guide
Replacing a main relay is a relatively straightforward DIY project that can save you money on labor costs. Before you begin, gather the necessary tools: a socket set, a screwdriver, a replacement main relay, and a wiring diagram for your vehicle. First, disconnect the negative battery cable to prevent electrical shock. Locate the main relay. Consult your owner's manual or a repair guide to find its exact location. Remove the old main relay. Depending on the vehicle, it may be held in place by a clip, a screw, or a plastic connector. Install the new main relay. Make sure it's securely connected and properly oriented. Reconnect the negative battery cable. Start the engine to verify that the new main relay is working properly. If the engine starts and runs smoothly, you've successfully replaced the relay. If the engine still doesn't start, double-check your connections and consult a qualified mechanic. If you're not comfortable working on your car yourself, take it to a professional. They have the tools and expertise to replace the main relay safely and effectively. When purchasing a replacement main relay, make sure it's compatible with your vehicle's make and model. Using the wrong relay can damage your electrical system. Follow the manufacturer's instructions for replacing the main relay. This will ensure that you do it correctly and avoid any potential problems. Be careful when working around electrical components. Always disconnect the battery before working on your vehicle's electrical system to avoid electrical shock. By following these steps, you can successfully replace your main relay and get your car back on the road.
What If You Ignore the Symptoms? The Consequences of Neglect
Ignoring the symptoms of a failing main relay can lead to a cascade of problems, some of which can be quite severe. The most immediate consequence is the risk of being stranded. A failing main relay can cause the engine to stall unexpectedly, leaving you stranded on the side of the road. This can be especially dangerous in inclement weather or in a remote location. A faulty main relay can also damage other electrical components. If the relay is not functioning properly, it can send voltage spikes to other parts of the electrical system, potentially damaging sensitive components like the fuel pump, ignition module, or even the ECU (Engine Control Unit). A failing main relay can also lead to decreased fuel efficiency. If the relay is not providing the correct voltage to the fuel pump, the engine may run rich or lean, resulting in poor fuel economy. Over time, a faulty main relay can cause the engine to run rough and misfire. This can damage the engine's internal components and reduce its lifespan. Ignoring the symptoms of a failing main relay can also create a safety hazard. If the engine stalls unexpectedly while you're driving, you could lose control of the vehicle and cause an accident. The longer you delay addressing a main relay problem, the more likely it is that the issue will escalate and lead to more costly repairs. A simple main relay replacement can prevent a host of other problems down the road. Don't wait until you're stranded on the side of the road to address a suspected main relay issue. Take action now to prevent potential problems and ensure your vehicle's reliable operation. Regular maintenance and prompt repairs can save you time, money, and aggravation in the long run.
Listicle of Main Relay Symptoms: Quick Identification Checklist
Here’s a quick checklist of the most common main relay symptoms to help you identify potential problems:
1.No-Start Condition: The engine cranks but refuses to start, indicating a lack of fuel or ignition.
2.Intermittent Stalling: The engine stalls unexpectedly while driving, especially when hot.
3.Fuel Pump Issues: The fuel pump doesn't prime when you turn the ignition key to the "on" position.
4.Check Engine Light: The check engine light may illuminate, indicating a fuel system or ignition problem.
5.Rough Idle: The engine idles roughly or unevenly, suggesting a misfire or fuel delivery problem.
6.Decreased Fuel Efficiency: Your vehicle's fuel economy declines noticeably.
7.Difficulty Starting When Hot: The engine struggles to start after it's been running for a while and is hot.
8.Tapping Noise: A faint clicking sound coming from the main relay when the ignition is turned on.
9.Visible Damage: Cracks, corrosion, or burnt terminals on the relay itself.
10."Tap Test" Success: The engine starts immediately after tapping on the main relay.
If you experience any of these symptoms, it's a good idea to inspect your main relay and consider replacing it as a preventative measure. Don't ignore these warning signs, as they could indicate a potentially serious problem that could leave you stranded. Early detection and repair can save you time, money, and a whole lot of frustration. Remember, a small investment in a new main relay can prevent a major headache down the road.
Question and Answer Section: Main Relay Troubleshooting
Here are some frequently asked questions about main relays and their symptoms:
Q: How can I be sure it's the main relay and not something else?
A: The main relay often exhibits specific symptoms like intermittent stalling, especially when hot, and a no-start condition with the engine cranking but not firing. The "tap test" (gently tapping the relay) can provide clues, but a multimeter and wiring diagram can help confirm power and ground connections.
Q: Can a bad main relay drain my car battery?
A: While not the most common cause of battery drain, a failing main relay can sometimes cause a slight parasitic draw if it's stuck in a partially energized state. It's best to rule out other common causes of battery drain first, such as a faulty alternator or lights left on.
Q: How much does it cost to replace a main relay?
A: The cost of a main relay replacement is typically quite affordable. The relay itself usually costs between $15 and $30, and labor costs can vary depending on the shop and your vehicle's accessibility. It's often a job you can tackle yourself to save on labor costs.
Q: Where is the main relay located in my car?
A: The location of the main relay varies depending on the make and model of your vehicle. It's typically found near the fuse box, either under the dashboard or in the engine bay. Consult your owner's manual or a repair guide for the exact location.
Conclusion of Main Relay Symptoms: The $20 Part That Could Leave You Stranded
The main relay, though small and inexpensive, plays a critical role in your vehicle's operation. Understanding its function, recognizing the symptoms of failure, and taking preventative measures can save you from being stranded and facing costly repairs. Whether you choose to diagnose and replace the relay yourself or seek professional help, being informed about this often-overlooked component empowers you to keep your car running smoothly and reliably. So, next time your car acts up, don't forget to consider the humble main relay – it might just be the key to getting you back on the road.
